Wall & Pole-Mounted DC Charging
Wall & Pole-Mounted DC Charger 7-80kW
Space-saving wall and pole-mounted DC charging solutions for commercial and home use. Compact design, OCPP1.6J protocol, smart connectivity. Perfect for locations with limited space.
Available Models
Wall & pole-mounted DC charging stations for commercial and residential applications

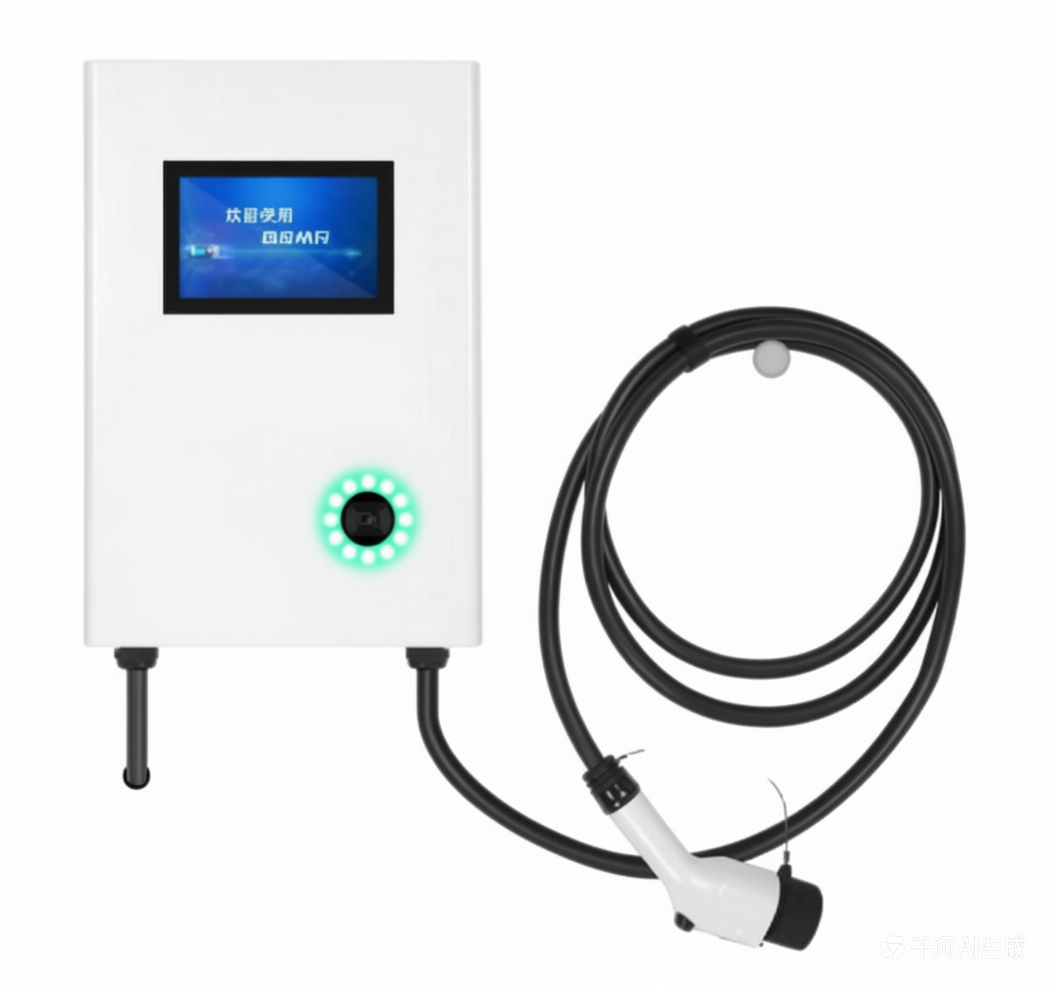

E4W1-007-F1A2
7kW Single-Gun
- 430×300×100mm (Ultra-slim)
- 220VAC±20%, 32A
- Plug & Charge / APP / RFID
- RFID Function
- Customizable Screen
- OCPP1.6J + Bluetooth
Smart Version
Supports Charging Management System (CMS)

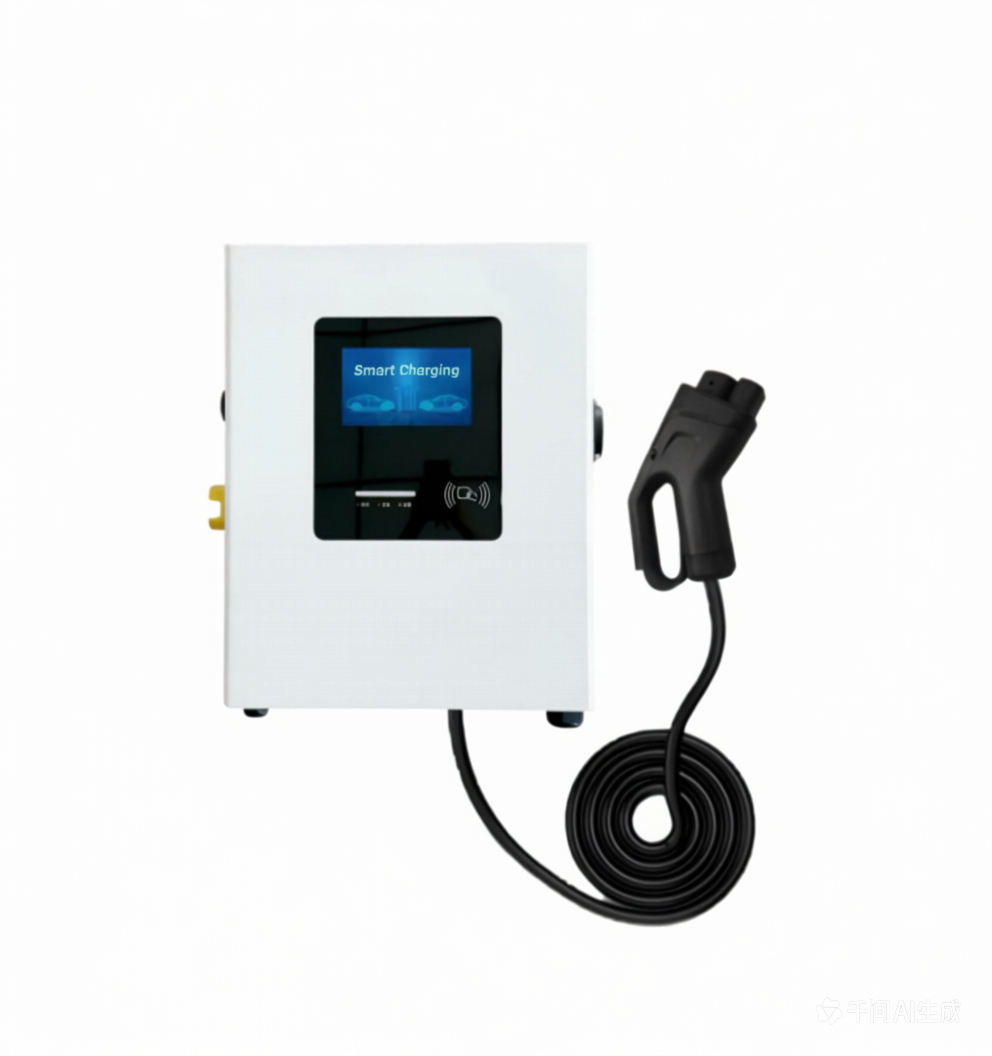

E4U2-030-F4L6
20/30/40kW Single-Gun
- 620×515×164mm
- 380VAC±20%, 32/50/64A
- RFID / APP / Plug & Charge
- Independent Air Duct Design
- Ultra-thin Module (16mm)
- OCPP + Ethernet + WiFi
Smart Version
Supports Charging Management System (CMS)

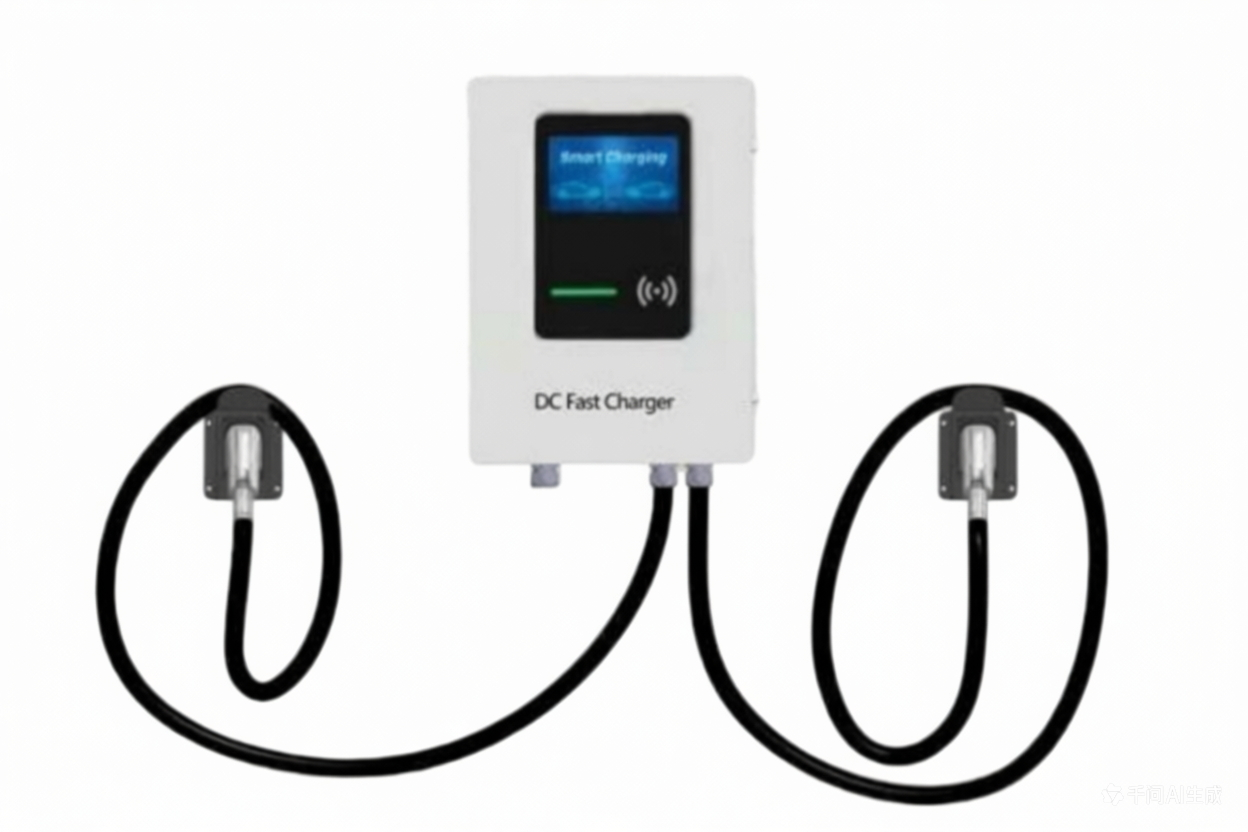

E4X1-080-D2L6
40/60/80kW Dual-Gun
- 620×515×164mm
- 380VAC±20%, 64/100/128A
- RFID / APP / Plug & Charge
- Independent Air Duct Design
- CE Certified
- Smart Platform
- Customizable Screen Language
Technical Specifications
Common Specifications
| Operating Altitude | ?000m |
| Operating Temperature | -30°C ~ +50°C |
| Operating Humidity | 5% ~ 95% (non-condensing) |
| Protection Level | IP54 |
| Cable Length | 5 meters |
| Mounting Options | Wall-Mounted / Pole-Mounted |
| Charging Method | RFID / APP / Plug & Charge |
| Communication | OCPP1.6J, Bluetooth, Ethernet, WiFi |
Protection Functions
Overvoltage
Undervoltage
Overcurrent
Leakage
Grounding
Over-temperature
Surge Protection
Standards
| 7kW / 20-40kW | GBT / CCS1 / CCS2 |
| 40-80kW Dual-Gun | GBT / CCS1 / CCS2 / Mixed Gun |
